Automatic Molding Machine
Product Overview
Our fully automatic molding machine offers one-button operation—no professional workers required. Simply press “Start” for complete molding (core-down optional). Horizontal parting enables easy core placement, while compatibility with coal powder sand, clay sand, and red sand reduces material constraints. Quick template change in 5 minutes suits frequent mold replacement. Adjustable mold hardness (up to 85–90°) and height save sand while ensuring precision. A high-accuracy positioning system delivers stable, uniform molds in ~36 seconds per box. Equipped with advanced light curtain protection for safety.
Types of Automatic Molding Machine
.png)

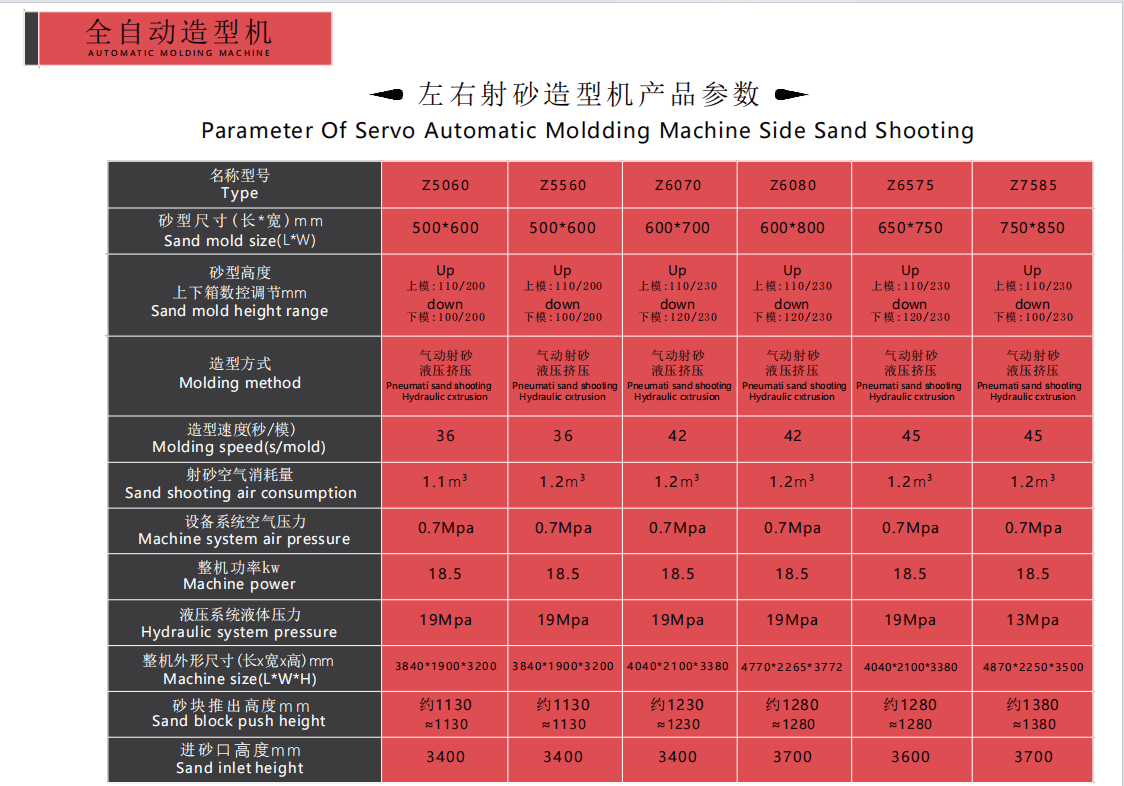

Servo Side Sand Shooting Automatic Molding Machine
Featuring advanced servo side sand shooting technology, this fully automatic molding machine ensures uniform sand distribution and high-quality molds. One-button operation requires no skilled workers. It uses common sands—coal powder, clay, and red sand—and supports quick mold changes within five minutes. Mold hardness and height are adjustable for efficient sand use. With precise mold closing and positioning, it delivers consistent, reliable casting. Safety is enhanced by light curtain protection. The molding cycle takes about 36 seconds per box.
Speed: 100 pcs/hr
Servo Up And Down Sand Shooting Automatic Molding Machine
This fully automatic molding machine features precise servo-driven up and down sand shooting for consistent mold quality and efficiency. One-button operation simplifies use with no skilled labor needed. It supports various sand types—coal powder, clay, and red sand—and offers quick mold change in under five minutes. Adjustable mold hardness (up to 85–90°) and height optimize sand usage. The machine ensures high mold closing accuracy and stable casting quality with advanced positioning and control systems. Safety is prioritized with light curtain protection. Typical molding cycle time is around 36 seconds per box.
Speed: 80 pcs/hr
Why Choose ZMZO Automatic Molding Machine?
Servo Side Sand Shooting Technology
Ensures uniform sand distribution for high-quality molds.
Fully Automatic One-Button Operation
No skilled labor required, easy to operate.
Wide Sand Compatibility
Works with coal powder sand, clay sand, and red sand.
Quick Mold Change
Template replacement in under 1 minute for high flexibility.
Adjustable Mold Hardness
Up to 85–90°, meeting diverse casting requirements.
Adjustable Mold Height
Optimizes sand usage and reduces production costs.
High Precision & Stability
Accurate mold closing and positioning for consistent results.
Advanced Safety Protection
Light curtain system safeguards operators during operation.
Kickstart Your Foundry Automation With ZMZO
Boost Your Molding Efficiency with Custom Solutions
Accessories

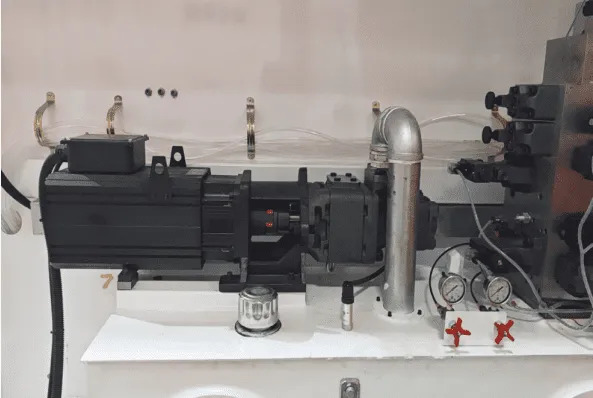

Servo Motor
- Huichuan servo motor. Saving electricity 10% – 60%; effectively reducing oil temperature. Suitable for continuous work.
- Combine Huichuan servo motor + oil research and hydraulic.
- Benefiting from the reduced oil temperature, the service life of oil seal is prolonged obviously.

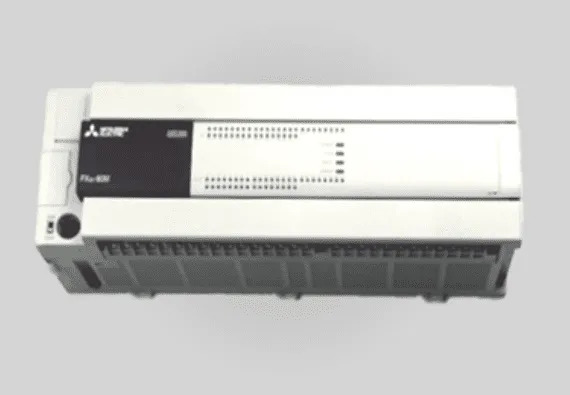

Mitsubishi PLC
- High-end machine. Featured with high speed, large capacity, and multi-function.
- Stable system. Strong anti-interference ability; fast operation speed; strong expanding ability, realize high-precision control.

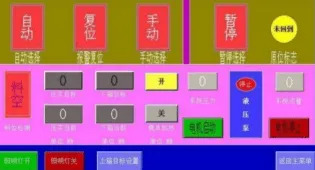

Mitsubishi Touch Screen
French Schneider Electronic Components

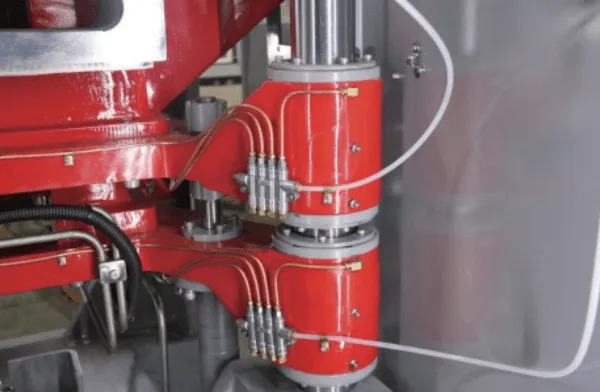

Automatic Oil Injection (HERG)
- Denied manual butter trouble. Stable output pressure; zero noise; long life; give full play to the lubrication effect. Available under harsh environment.

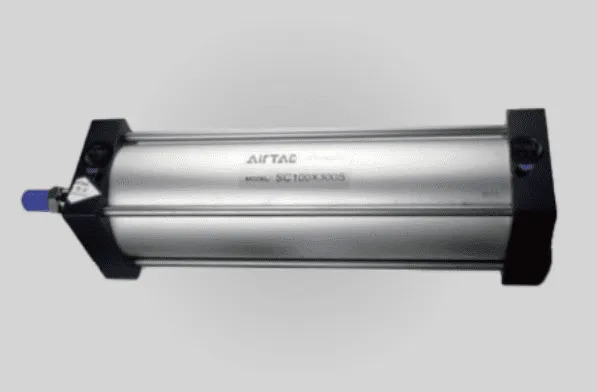

Taiwan AirTAC Pneumatic System
- Boasts swift action, remarkable reliability, long-lasting durability. Includes adjustable air cushions on its front and rear covers to reduce shock and protect equipment. It’s the premier power solution for high-precision, high-efficiency automatic control in industrial production.

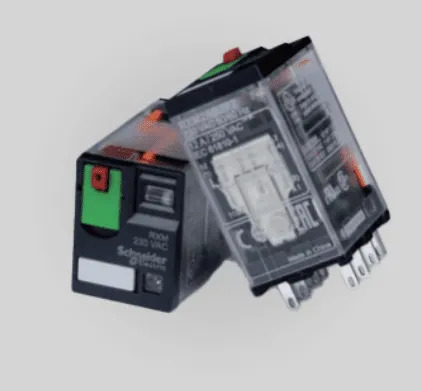

Schneider Relay
- With its excellent breaking capacity and strong protective functions, it effectively ensures circuit safety.
- Easy and quick to operate with high safety, it is an ideal product for the field of industrial control.
-
It provides stable and reliable operational protection for power systems.

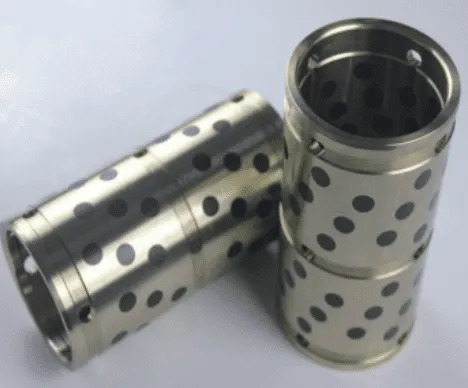

Graphite Wear-resistant Copper Sleeve
- Special alloy formulation, it boasts the highest strength among brass materials, combining exceptional hardness and wear resistance to ensure dimensional stability over long-term service.
- Retains adequate plasticity to adapt to stress variations under complex operating conditions, and offers excellent corrosion resistance.
- Widely used in precision mechanical components operating in high-load, high-wear, and corrosive environments.

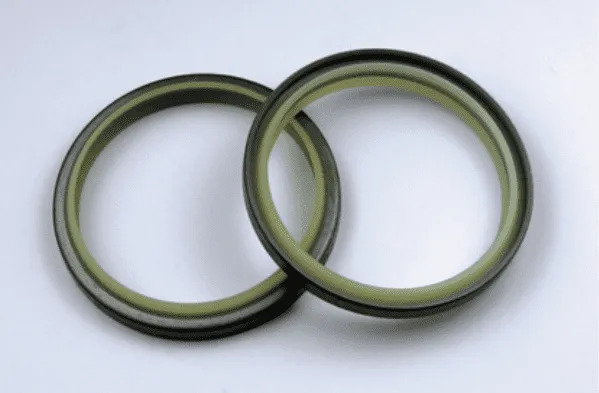

NOK Dust Ring
- Effectively prevents sand. Suit for harsh environment.
- It has stable sealing performance in water, oil, air, and even in gases.
- Availableinthe range of -60 °C to 220°C

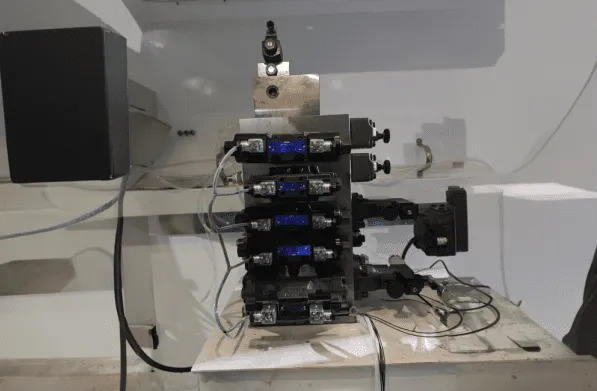

YUKEN Oil Imported Hydraulic Components
- Strong stability; low system heating; long service life of hydraulic components.
- The system has a good self-adaptive ability.
- Its output pressure and flow are consistent with the demanding load.

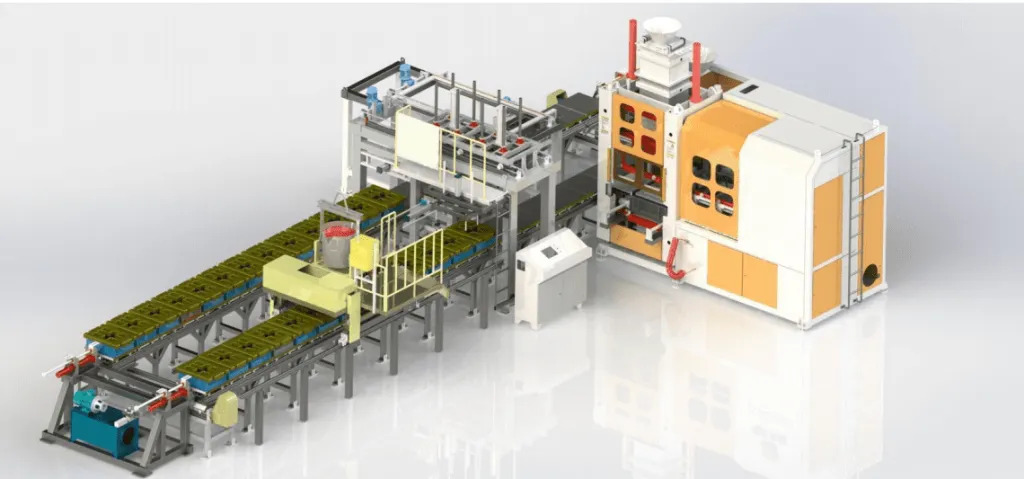

Trolley Line Case
The fully automatic molding machine pushes out the sand mold, then sends a signal to the auxiliary line. The auxiliary line performs an action in response, enabling a one-box-push-one-box cycle that links the molding machine with the auxiliary line.
The auxiliary line has a pouring area; when the sand mold reaches this area, pouring is carried out. After pouring, the auxiliary line trolley moves forward. When the cycle reaches the manipulator position, the flask and pressing iron are automatically fitted onto the sand mold just discharged from the molding machine.
After the flask and pressing iron are removed, the sand block is automatically pushed out of the auxiliary line and falls onto the sand treatment cooling conveyor, then enters the vibrating screen, where the sand mold and casting are automatically separated.

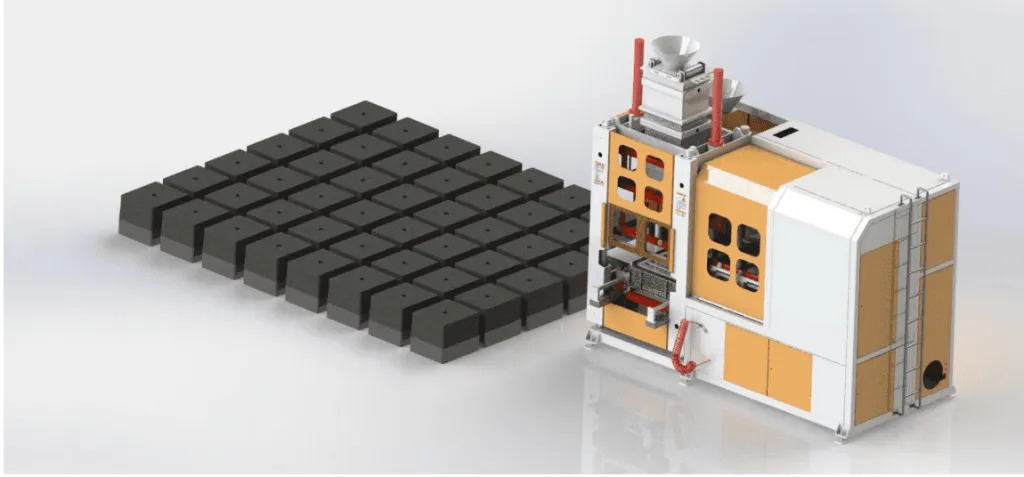

Lay Out Line Case
This is a relatively simple and economical molding solution. Once purchased, the fully automatic molding machine can be put into production immediately. Simply secure the molding machine and the lifting frame, then start the conveyor belt to feed sand into the molding machine. For each completed mold box, use a pallet to receive the sand mold, then remove it with a handcart and place it flat on the ground for pouring.
